2.54mm Slot Right Angle DIP Connector

Product Specifications: 2.54mm Slot Right Angle DIP Connector

$500

≥1000
Piece/Pieces

Payment Type:

T/T,Paypal

Incoterm:

FOB,CIF,EXW,FCA

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Air,Express

Port:

Shenzhen

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: ECCR-XB3.4S0XB04

Brand: ANTENK

Origin: China

Certification: ISO9001

Place Of Origin: China

Interface Type: Ac/Dc

Housing: Plastic

Pin: Brass

Poles: Other

Application: Other

Certification: Other

Material: Brass

Support Card Number: Other

Operating Frequency: High Frequency

Classification: Other

Gender: Male

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 2000K/month

Transportation: Ocean,Air,Express

Place of Origin: China

Supply Ability: 2000K/month

Certificate: ISO9001

HS Code: 8536909000

Port: Shenzhen

Payment Type: T/T,Paypal

Incoterm: FOB,CIF,EXW,FCA

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: bag packing,Tube packing, reel packing

Introducing the 2.54mm Slot Right Angle DIP Connector, a game-changer for professionals who love to connect things at peculiar angles! Say goodbye to boring straight connectors and embrace the wacky world of right angles. This connector is like the Picasso of the electronic world, adding a touch of artistic flair to your circuit boards. Need to connect two components in a way that defies gravity? No problem! This little marvel will make it happen. It's perfect for those moments when you want to impress your colleagues with your engineering acrobatics. So, why settle for ordinary when you can go right-angle extraordinary? Get your 2.54mm Slot Right Angle DIP Connector today and take your connections to a whole new dimension!

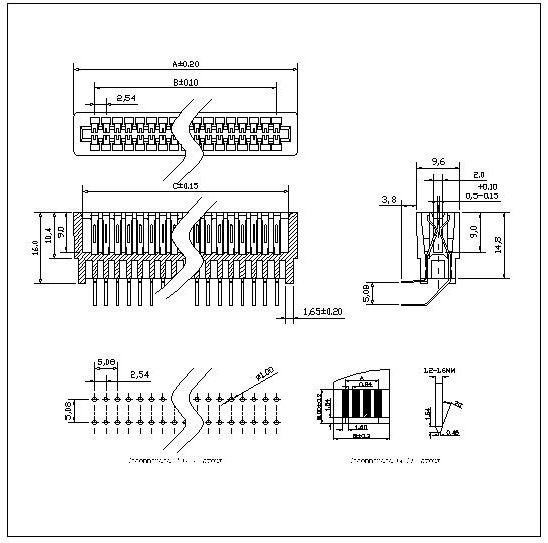

2.54MM Slot Right Angle DIP Connectors

Specifications:
1.CURRENT RATING:3AMP
2.DIELECTRIC WITHSTANDING VOLTAGE:1000V AC RMS 60Hz. 1MIN
3.CONTACT RESISTANCE:20 MILLIOHMS MAX
4.INSULATION RESISTANCE:5000 MEGOHMS MIN.At 500V DC
5.OPERATION TEMPERATURE:-55°C TO +105°C
6.INSERTION FORCE:0.4Kgf MAX.Per Pair
Insulator:PBT+G.F.(UL94V-0)
CONTACT:BRASS OF PHOSPHOR BRONZE GOLD PLATED ON CONTACT AREA
TIN PLATED ON SOLDER TAILS,OVER NICKEL
